**Rsrteng 4K 12MP IP Camera Tester with 8" Touch Screen - POE++ 90W, WiFi, SFP Module, Cable & Network Tester - Perfect for CCTV Installation & Maintenance** *(Use Cases: Ideal for security professionals, network installers, and IT technicians to test and troubleshoot IP cameras, POE devices, and network connections efficiently.)*

E88 4K 12MP IP Camera Tester with POE++ Max 90W Power Output,1CH SFP Interfaces CCTV tester usually used for the installation and maintenance of IP network camera and coaxial HD surveillance camera and security system. Max support 4K 12MP IPC Tester, POE++ max 90W power output, 1CH SFP, cable tester, network tools. Previous page Next page 1 4K 12MP IP Camera Tester 2 IP Discovery ONVIF 3 HIK DH Camera Test Tools 4 WIFI Analyzer 5 Network Tools Previous page Next page 1 1CH SFP Module Interface 2 Power Management/POE 3 UTP Cable Tester 4 RJ45 TDR Cable/Length 5 APP Update/Multi-language Previous page Next page

【POE++ MAX 90W Power Output & Gigabit SFP Module】Rsrteng Model E88 Model CCTV Tester support standard IEEE 802.3af & IEEE 802.3at and IEEE 802.3bt POE++,max 90W power output. Supports standard POE cameras and high-power PTZ speed dome camera with POE function. Provide power supply for high-power PTZ speed dome camera. 1CH SFP optical fiber module interface,support insert Gigabit SFP optical fiber module for optical fiber network testing.

【4K IP Camera Tester 】Network camera tester support max 4K 12MP 4000*3000P IP Camera tester. 4CH ONVIF, Rapid Video,auto view the video,IP discovery, CCTV Tester built-in special tools for Hik and for DH and other 3rd brand camera test tools, for Hik and DH cameras, support batch activate for cameras and modify IP address, username and password. Self-defined modify channel name.IPC Tester also compatible with most existing cameras. Create testing report.

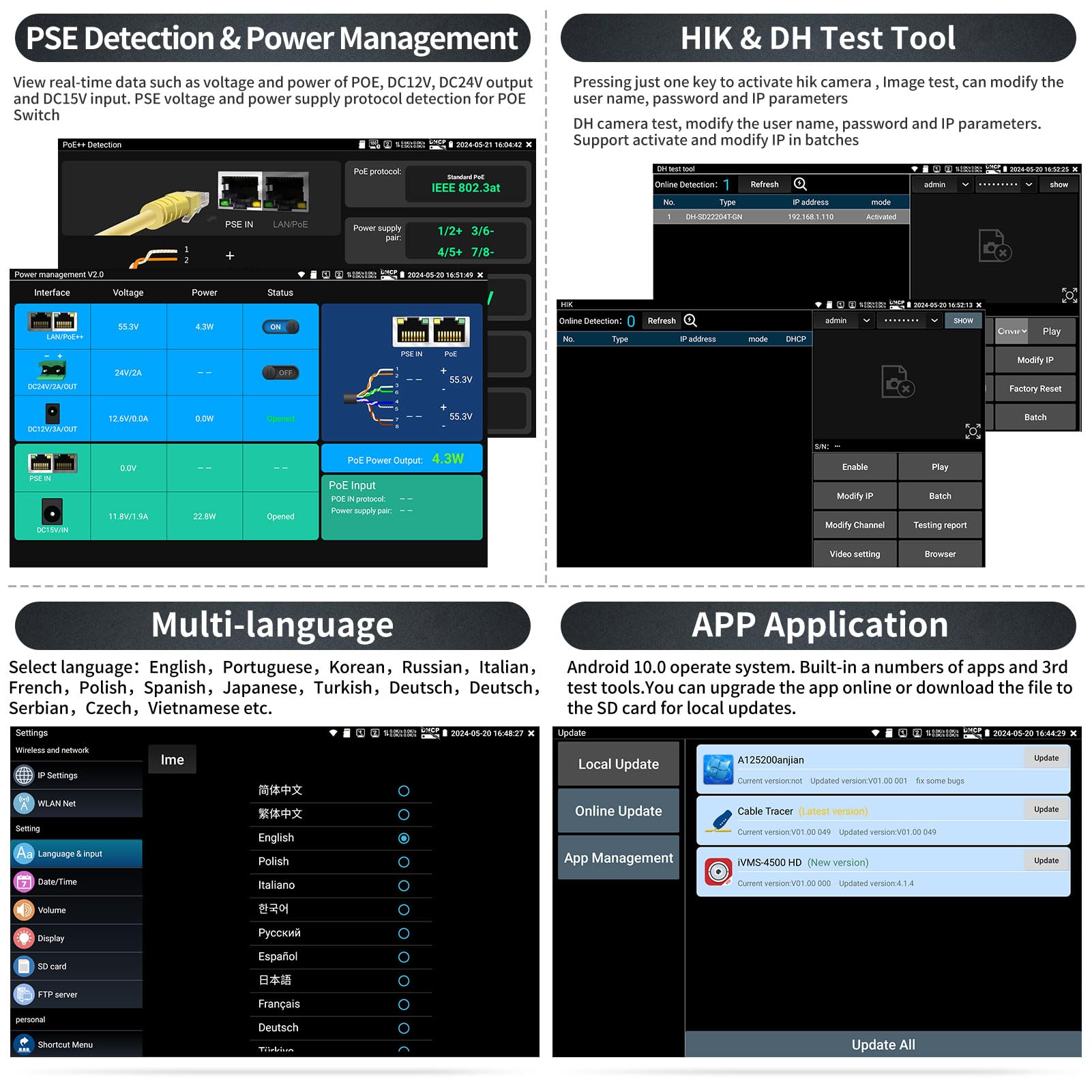

【Network Tool & WIFI & POE Detection & Power Management】Network test tool trace route, Link monitor, DHCP server, port flashing, Ping test. Built in WIFI, speeds 150Mbps, 2.4GHz. WIFl analyzer can view wifi information, test wifi strength,analyze channel occupancy and channel rating, etc. Support POE detect. Power management can view real-time data such as voltage and power of POE, DC12V, DC24V output and DC12V input. PSE voltage and power supply protocol detection for POE Switch.

【Cable Tester & Appliction port】POE camera tester built-in UTP cable test, RJ45 TDR cable, cable length app. Support PD power test and AC voltage detector. Dual 10/100/1000M Gigabit Ethernet ports.Audio Input/Output,HDMI Input/Output,VGA input, DC output24V/2A,12V/3A,5V/2A.

【Power & App Update & Friendly Service】8 inch IPS touch screen IPC Tester,1920x1200 resolution,Android 10.0 system. Power by 11.1V lithium polymer battery,5200mAh,57.72Wh. Application Update support upgrade the app online or download the file to the SD card for local updatesWe are the manufacturer of cctv camera tester and have a professional after-sales technical team,so you don’t have to worry about technical problems.
